Fact: PTFE is officially designated by Guinness World Records as worlds most slippery substance.

TIP: Do not tighten the gasket beyond its elastic point to cover lack of symmetry between flanges.

What was discovered by accident is now used to prevent accidents? Doctor Plunkett was working on non-toxic alternatives on refrigerant in DuPont. In one of his experiments, he stored around 100 pounds of TFE-tetrafluoroethylene gas in a cylinder. After few days when he tried to use the TFE-gas, nothing came out of the cylinder. He decided to cut the cylinder with the help of his assistant. To his surprise, the TFE-gas has polymerized into a waxy white powder. Which was eventually called PTFE and patented by DuPont? Today, PTFE is sold by different manufacturers under several brand names.

Dale Kleist a researcher was trying to weld to two glass blocks to form an airtight seal. The accidentally molten glass was hit by compressed air which resulted in an easy way of creating fiberglass.

PTFE Coated Fibreglass Fabric - Comprising the coat which is PTFE and the substrate-Fibreglass Fabric adhered together through a coating system. PTFE (Polytetrafluoroethylene), when coated on fiberglass fabric, makes it a high tensile membrane. PTFE makes the fabric thermally stable, chemical resistant, insoluble in almost all solvents, UV resistant, flexible and does not break when subject to stress, high resilience characteristics, lowest friction coefficients, dielectric constant, nonflammable, waterproof and excellent insulator. Whereas Fibreglass maintains the structural function of the safety spray shield. Fiberglass has high modulus elasticity and high tensile strength.

We take utmost care in choosing the fabric for the flange guards and ptfe shield so that there are no pin holes which eventually may lead to accidents. Coating thickness is checked so that ptfe flange guard can perform in extreme conditions for extended periods. We use Kevlar threads, to assemble our flange shield, which are strongest and decomposes at 800 degrees Fahrenheit or 426 degrees Celsius. Kevlar threads have very little stretch and are 2-3 times stronger than nylon or polyester. Kevlar threads are only available in Yellow color and are very very expensive. They also have a very high maximum operating temperature.

All our flange guards are made of multiple layers of PTFE Coated fiberglass fabric with an inner scrim.

The inner scrim helps the safety spray shields in holding on to the flanges. Braided PTFE coated ropes are used on the safety shield which are fire retardant and do not decompose in extreme conditions. Cotton or nylon ropes will not last under these extreme conditions and eventually compromise the safety of the guard. Velcro is provided on the extreme ends of the safety spray shields giving it the second fastening system.

The Spray Guards are available for the following:

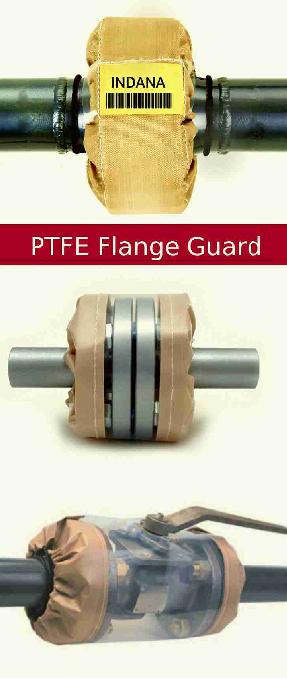

PTFE Flange Shield
PTFE Ball Valve Shield
PTFE Butterfly Valve Shield
PTFE Expansion Joints Shield

Installing TFE Flange guards and safety shield:

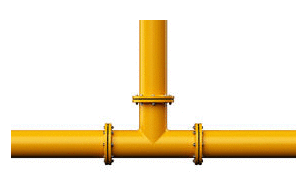

Teflon shield Installation

Salient Features of PTFE or Teflon Shields or Guards:

1.Permeable and Non-Permeable Shields
These guards are available in both permeable and non-permeable shields as per customer or process fluid requirements.

We use only the strongest and very high heat resistant threads.In case of process temperature going beyond the PTFE threshold the teflon threads will disintegrate and the shield will come out.Kevlar threads will still hold the fibreglass shield intact.NO GO Threads - Cotton / Nylon / Wool.

3.Limtus Paper
This will identify both Acid and Bases.
This helps in easy identification of process fluid leaks.

4.Central Scrim
This helps in holding the Teflon or PTFE shield securely to the Flanges /Valves.Also providing support to the entire structure of the PTFE flange shield or Guards.

5.Kevlar/Teflon Tie Cords
This helps in securely fastening the teflon or PTFE flange shield.Very Critical in case of a Spray out.NO GO Ropes -Cotton/Nylon.

Absolutely Customer Centric Pricing.

7.Custom Sizes
Our Teflon shields & spray guards are available in Tailor made larger sizes as per specific Customer requirement. The ptfe safety spray shields are available for Flanges, expansion joints, Ball Valves, Butterfly valves and other pipe joints in the piping system.

8.Eliminates Mist Formations:
PTFE Flange Shields are excellent at eliminating oil mist formations arising due to metal gasket failure.

9.Draw cord:
Ptfe coated glass fiber  draw cord are excellent at keeping the flange guard properly secured.

10.Chemical Resistant:
These Textile Flange Protectors are chemically resistant to almost all acids caustics etc.

11.Visual Inspection: PTFE Flange Guards have and option of adding a clear window which allows for visual inspection.

Feel free to ask us for quote or a Pricelist of PTFE Flange Guard: info@indanasteel.com

Looking for a Fabric shield for a less challenging environment and a lower cost? Have a look at Polyvinyl Chloride or PVC safety shields
